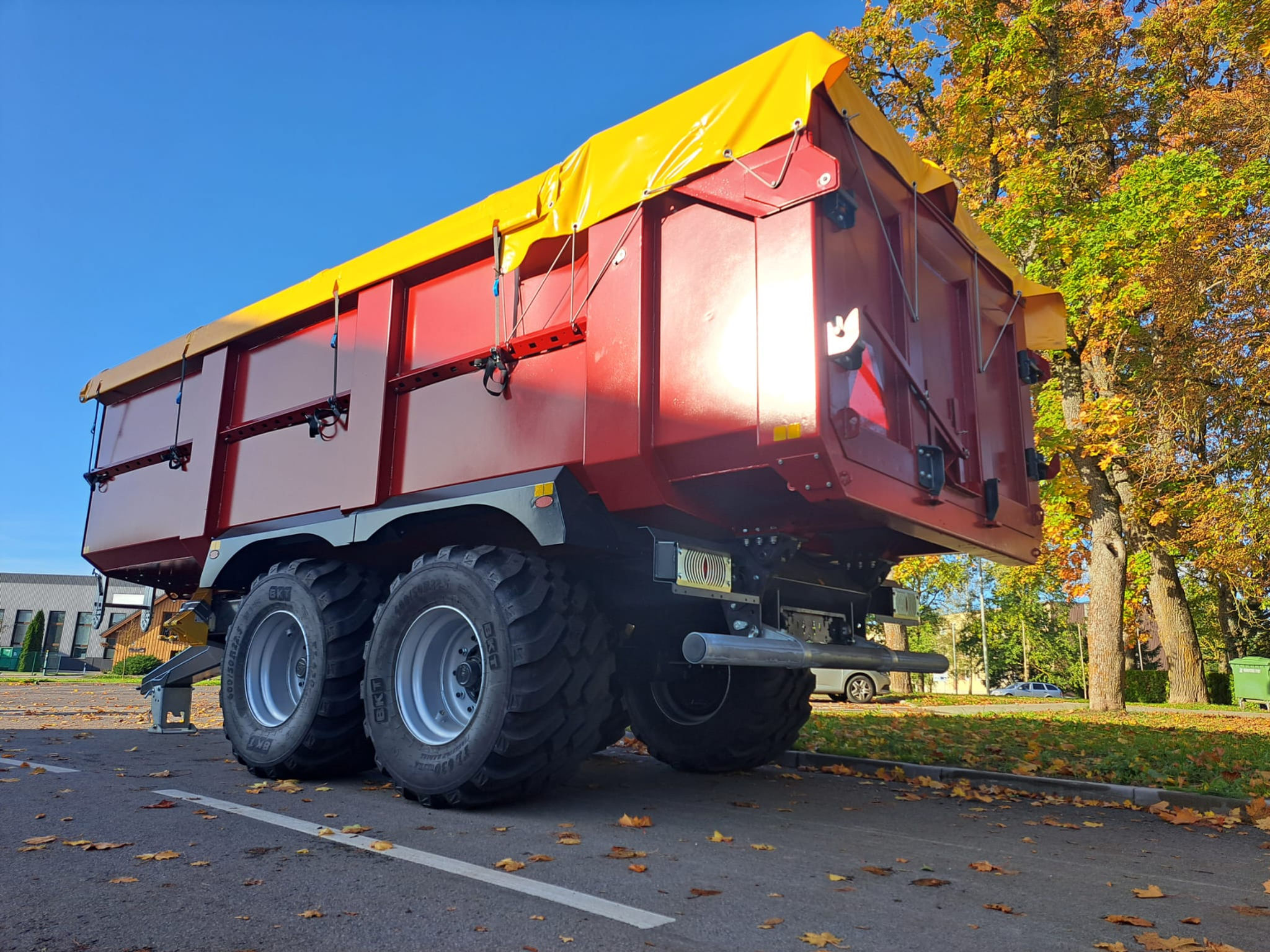

Ferrel 195VH
Technical Specification
| Frame /box color | RAL 7021/RAL 3003 |
| Internal box dimensions, L/W/H | 7000/ 2340/ 1500 mm |
| Empty weight | 6,5 t |
| Load capacity off-raod/on-road | 19,5 t/15,5 t |
| Total weight off-road/on-road | 26 t/22,0 t |
| Capacity | 24,6 m³ |
| Max tilt angle | 50° |
| Hydraulic pressure | 180…200 bar |
| Tilting cilinder | 2x NAT 6 |
| Axle/Wheel bolt | 100x100/ 10 bolts |
| Brake type | 406x140; 2/4 |
| Standard wheels | 710/40 R 22,5" |
Standard Equipment
- Scandinavian type swiwelling eye welded, D50 mm;
- S355 box bottom and sides, Strenx structural skeleton;
- Drawbar with spring suspension;
- Mechanical lifting cylinder limiters, 2 pcs;
- Hydraulic tailgate;
- Hydraulic brakes on 2 wheels;
- Steel mudguards;
- Tailgate movement limiter chains;
- LED rear lights with protection;
- Parking leg;
- Transport hooks outside the box, 4 pcs;
- Small grain hatch in box backdoor;
- Registration plate holder with light;
- Marker lamps on both sides;
- Climbing steps;
- Wheel blocks;
- Operator platform
- Standard wheels 710/40 R 22,5" BKT FL-630 Ultra;
-
*Standard equipment varies by market and may be subject to different specifications. All specifications and equipment are subject to change without notice.
